How Is Patterned Glass Made? Manufacturing Process Guide

Patterned glass has become one of the most popular decorative glass products used in modern architecture and interior design. From bathroom doors and office partitions to hotel interiors and luxury residential projects, patterned glass provides an ideal combination of privacy, aesthetics, and natural light transmission.

Many buyers, architects, and glass distributors often ask: How is patterned glass made?

As a professional glass factory and glass processing manufacturer in Guangzhou, China, TopoGlass supplies a wide range of patterned glass products for global construction and decoration projects.

What Is Patterned Glass?

Patterned glass, also known as textured glass, rolled glass, or obscure glass, is a decorative glass product manufactured by imprinting patterns onto the glass surface during production.

Unlike ordinary float glass, patterned glass contains embossed textures that diffuse light and create varying levels of privacy.

Popular patterned glass types include:

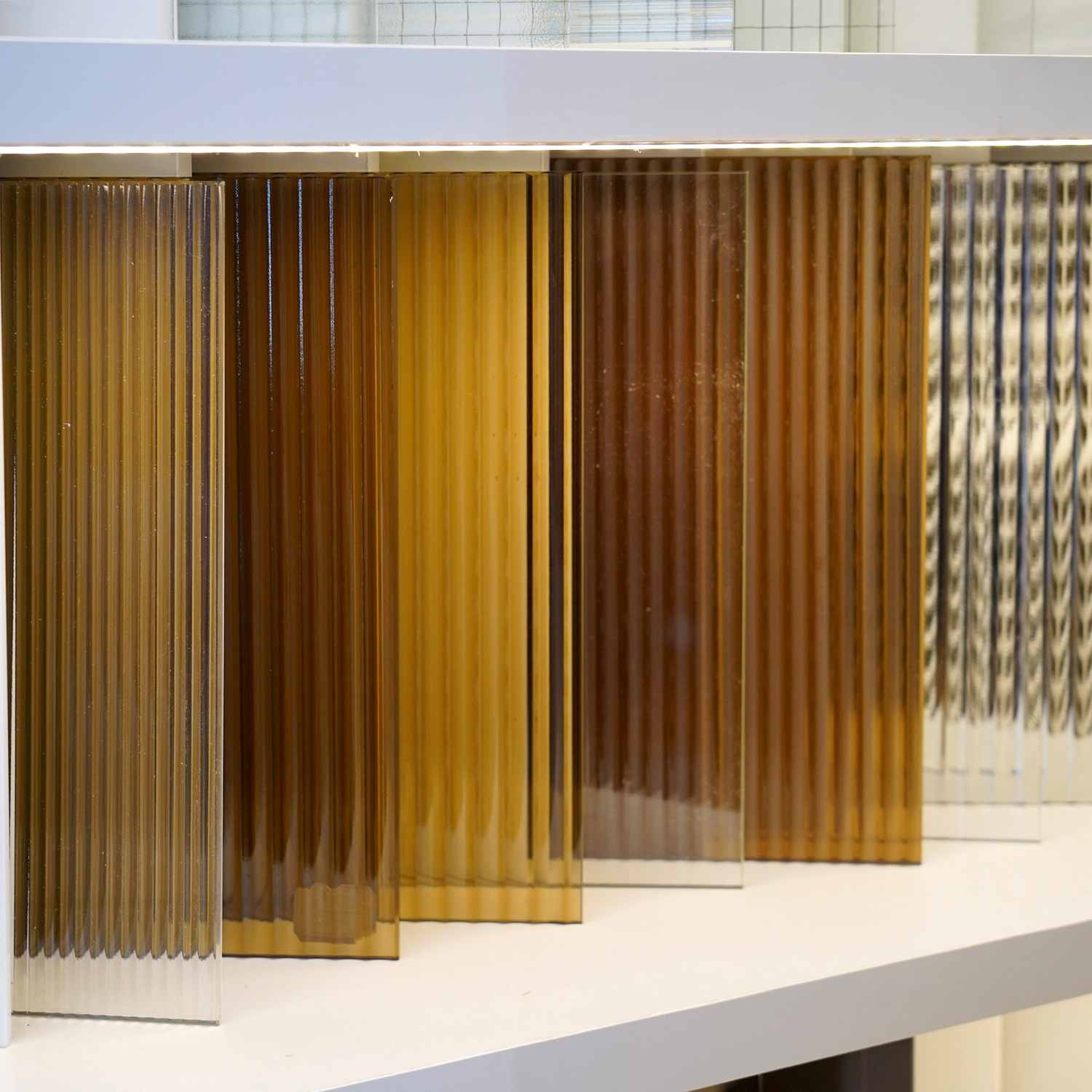

· Fluted Glass

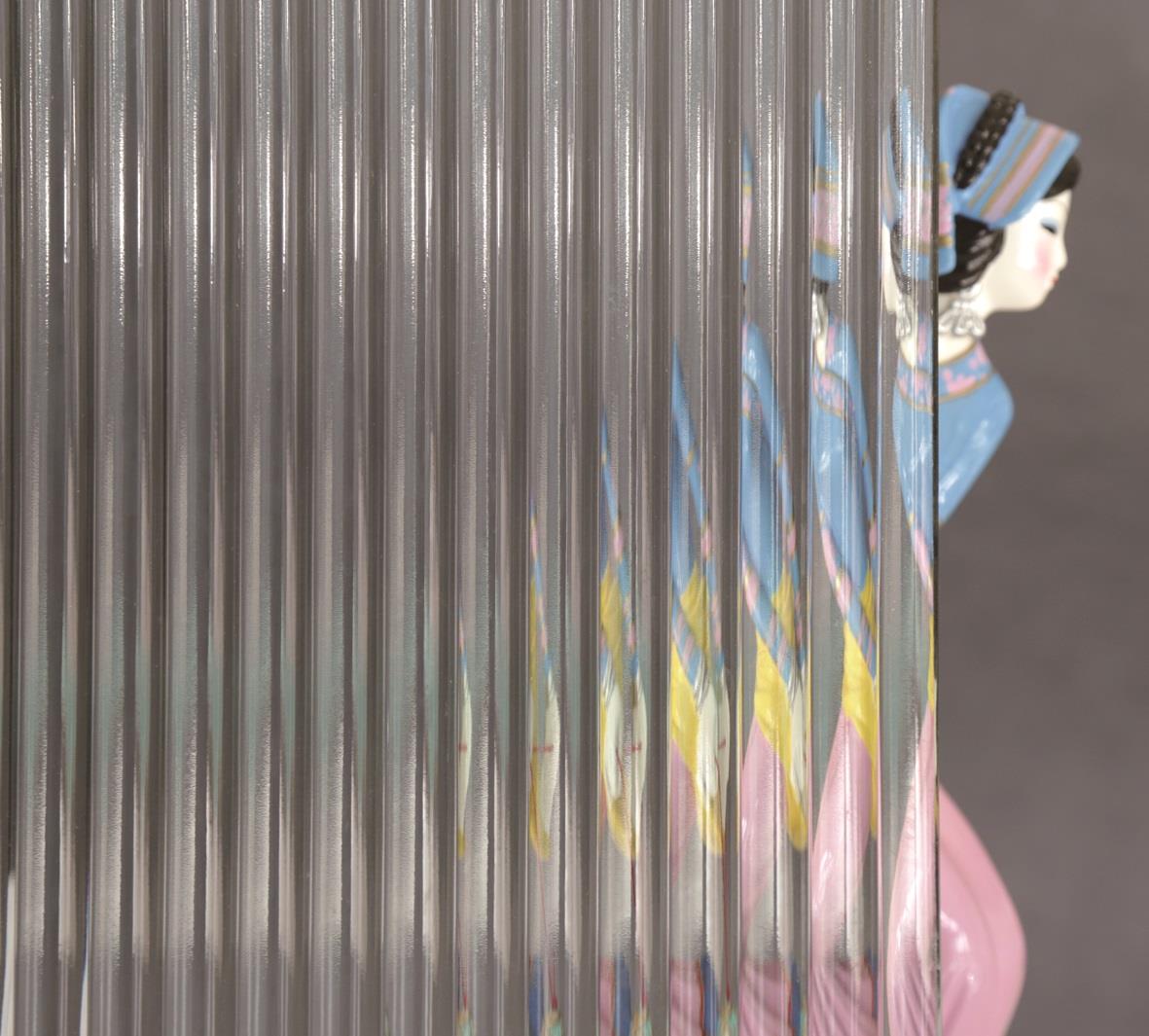

· Reeded Glass

· Moru Glass

· Rain Glass

· Diamond Pattern Glass

· Nashiji Glass

· Water Ripple Glass

· Bamboo Pattern Glass

These decorative textures make patterned glass highly popular in both residential and commercial applications.

Raw Materials Used in Patterned Glass Manufacturing

The production process starts with high-quality raw materials, including:

· Silica Sand

· Soda Ash

· Limestone

· Dolomite

· Feldspar

· Recycled Glass (Cullet)

Step 1: Glass Batch Preparation

The first stage involves preparing the glass batch.

Raw materials are weighed according to precise formulas and thoroughly mixed.

Modern glass factories use automated batching systems to ensure:

· Accurate proportions

· Consistent quality

· Efficient production

The prepared mixture is then transferred to the melting furnace.

Step 2: Glass Melting Process

The raw material mixture is melted inside a high-temperature furnace.

Typical furnace temperatures range from:

1400°C to 1600°C

At these temperatures, all raw materials fuse into a homogeneous molten glass mass.

During melting, impurities and gas bubbles are removed to improve optical quality.

Step 3: Pattern Rolling Process

This is the most important step in patterned glass manufacturing.

Unlike float glass production, molten glass passes through specially designed rollers.

One or both rollers contain engraved patterns.

As the molten glass moves between the rollers:

· Decorative textures are pressed into the surface.

· Pattern details are permanently formed.

· Glass thickness is controlled.

The roller design determines the final glass pattern.

This rolling process is what gives patterned glass its unique appearance and privacy performance.

Step 4: Controlled Cooling (Annealing)

After leaving the rollers, the patterned glass enters an annealing lehr.

The glass is gradually cooled under controlled conditions.

Annealing helps:

· Relieve internal stresses

· Improve stability

· Reduce breakage risk

Proper annealing is essential for maintaining product quality.

Step 5: Inspection and Quality Control

Once cooled, every glass sheet undergoes inspection.

Quality control teams check for:

· Pattern consistency

· Surface defects

· Scratches

· Bubbles

· Thickness tolerance

· Edge quality

Only qualified products move to the next processing stage.

Professional glass manufacturers maintain strict quality standards to ensure reliable performance.

Step 6: Cutting and Processing

After inspection, patterned glass can be customized according to project requirements.

Processing options include:

Cutting

Glass sheets are cut into custom dimensions.

Edge Polishing

Different edge finishes include:

· Flat polished edge

· Pencil edge

· Beveled edge

Drilling

Holes can be added for hardware installation.

CNC Processing

Complex shapes and designs can be manufactured using CNC equipment.

Step 7: Tempering Process

For safety applications, patterned glass is often tempered.

During tempering:

· Glass is heated to approximately 650°C.

· Rapid cooling creates surface compression.

Benefits include:

· Increased strength

· Better impact resistance

· Enhanced safety performance

Tempered patterned glass is widely used in doors, partitions, and shower enclosures.

Step 8: Laminating Process

Patterned glass can also be laminated.

Two or more glass sheets are bonded together using:

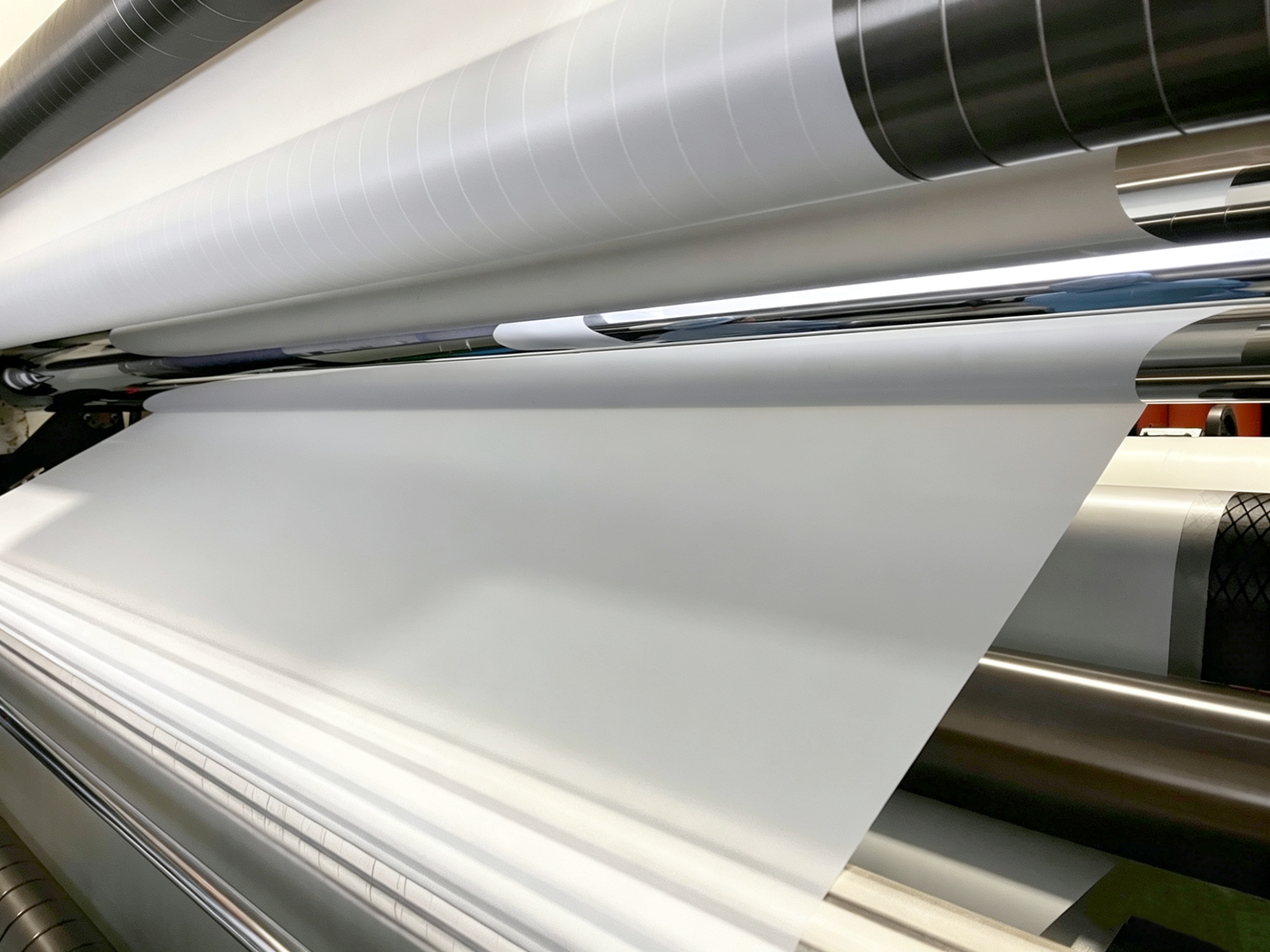

· PVB Interlayer

· EVA Interlayer

· SGP Interlayer

Laminated patterned glass offers:

· Safety protection

· Sound insulation

· UV resistance

· Security enhancement

This type of glass is frequently used in commercial and high-end residential projects.

Common Applications of Patterned Glass

Because of its decorative and privacy-enhancing properties, patterned glass is widely used in:

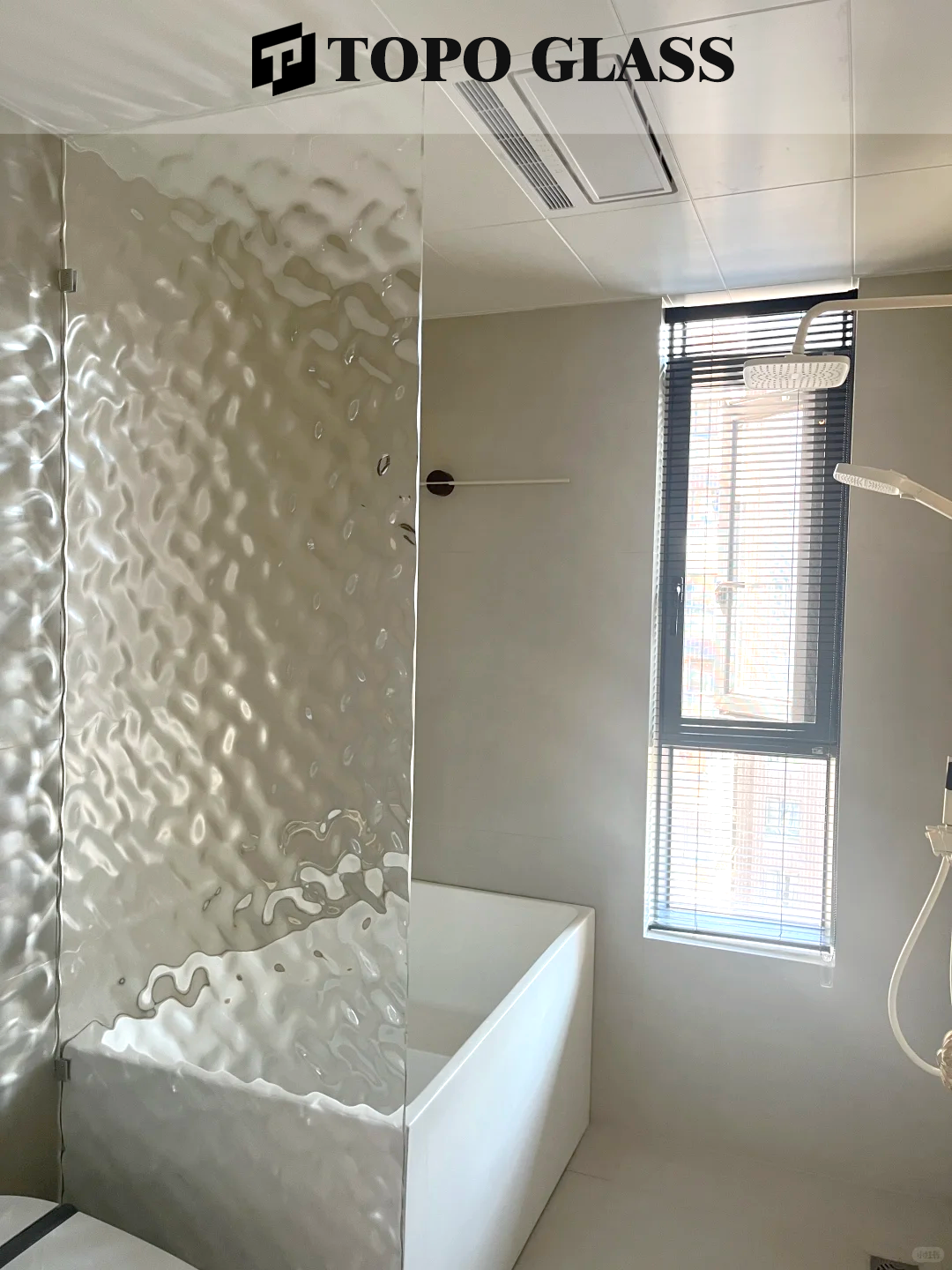

Bathroom Glass

Provides privacy while allowing natural light.

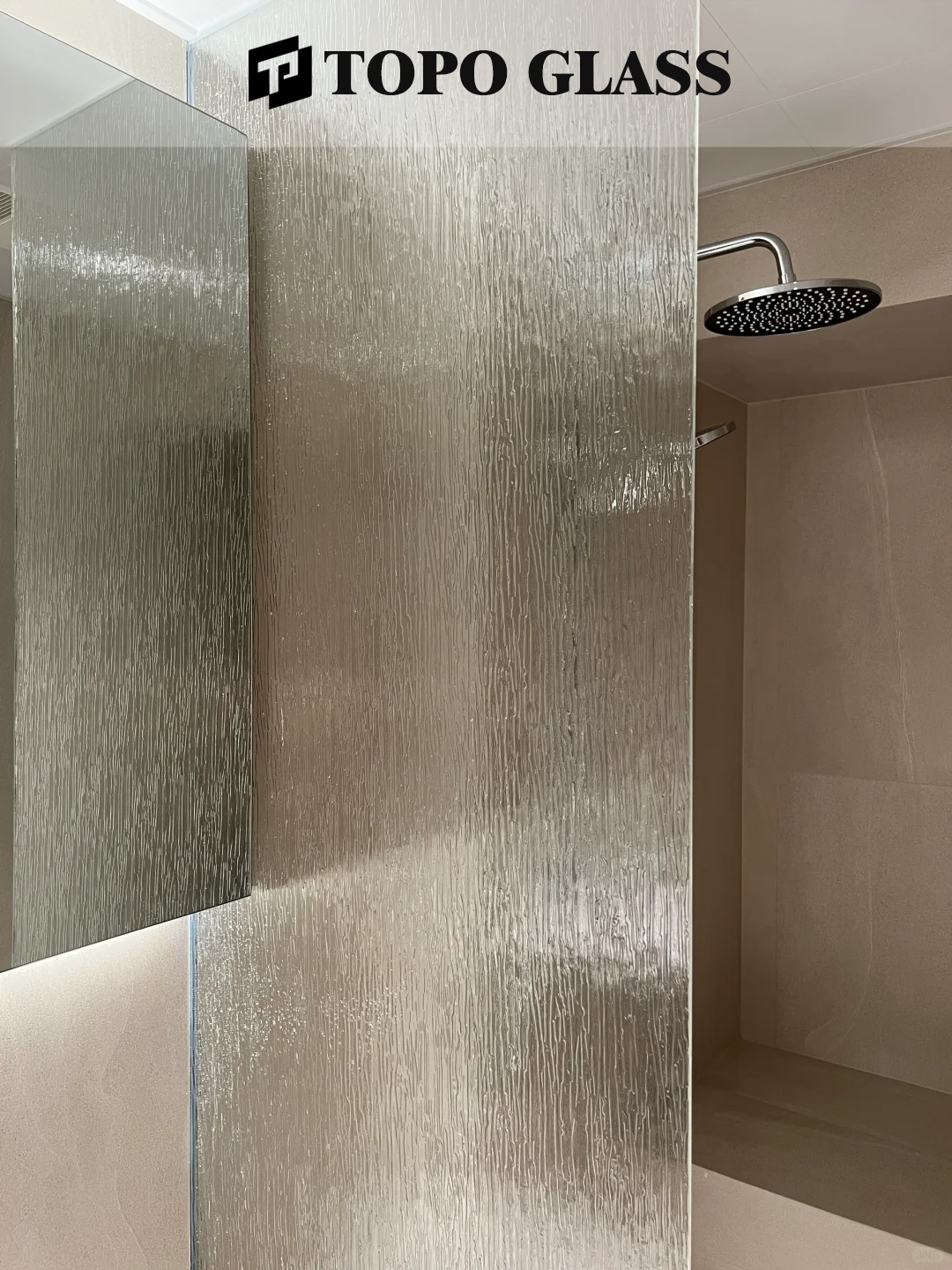

Shower Enclosures

Combines aesthetics and functionality.

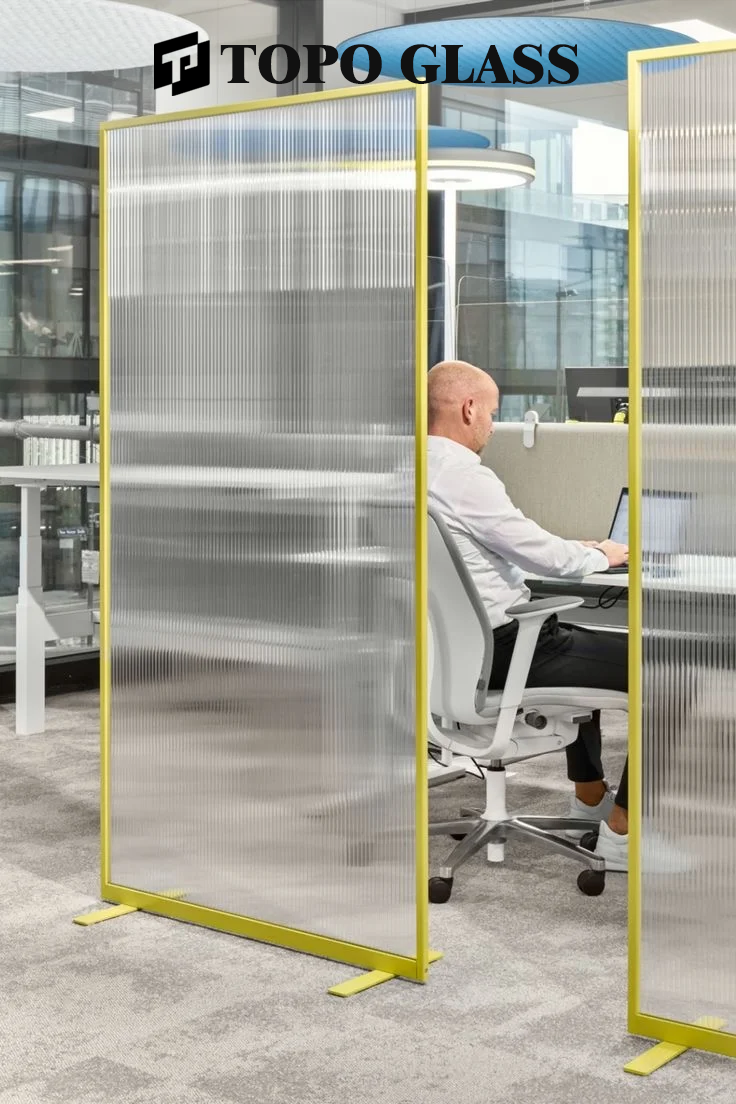

Office Partitions

Creates modern workspaces with partial privacy.

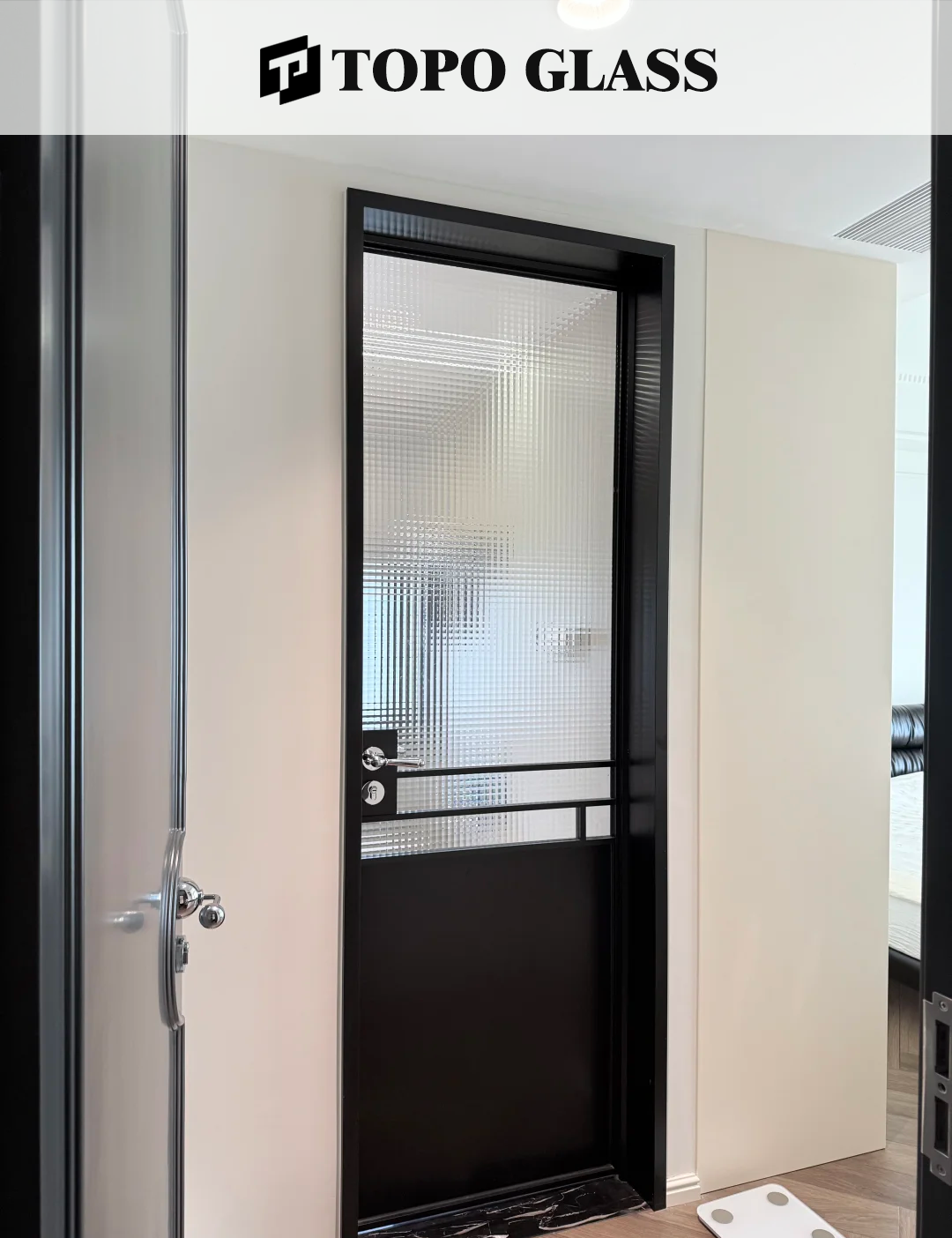

Interior Doors

Adds decorative appeal to residential and commercial interiors.

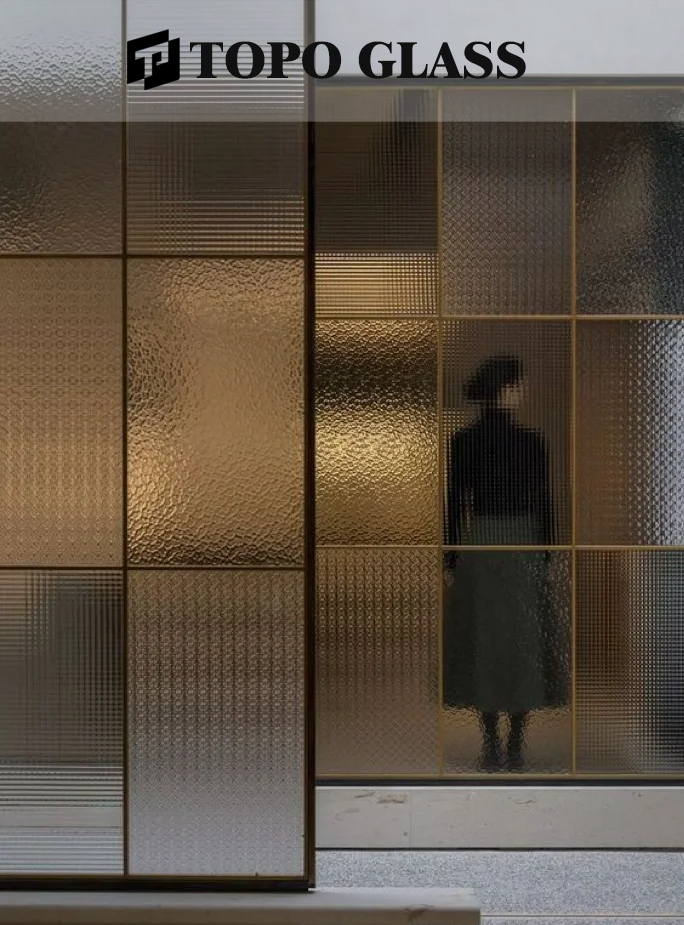

Hotel Decoration

Popular in luxury hospitality projects.

Retail Stores

Used for storefronts, partitions, and decorative features.

Residential Windows

Offers privacy without sacrificing daylight.

Advantages of Patterned Glass

The popularity of patterned glass comes from several key benefits:

Privacy Protection

The textured surface obscures direct visibility.

Natural Light Transmission

Allows sunlight to pass through while reducing visibility.

Decorative Appearance

Available in numerous attractive patterns.

Versatility

Can be tempered, laminated, insulated, and curved.

Customization

Supports custom sizes, thicknesses, and processing options.

Why Choose TopoGlass for Patterned Glass?

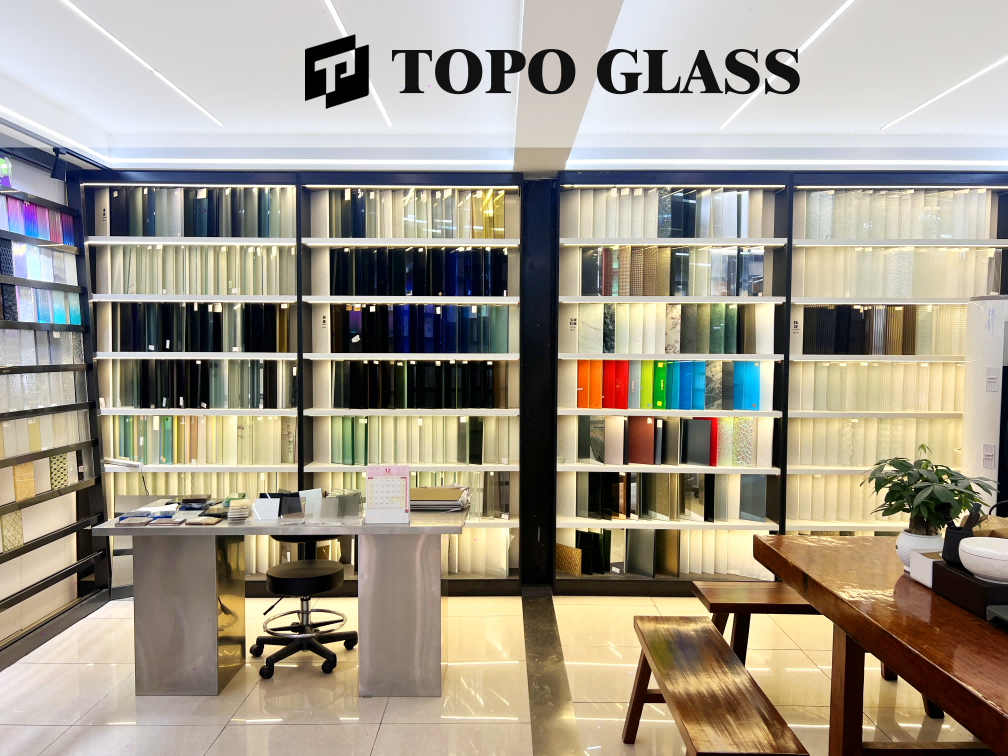

TopoGlass is a professional glass manufacturer located in Guangzhou, China.

We provide:

· Patterned Glass

· Tempered Patterned Glass

· Laminated Patterned Glass

· Decorative Glass

· Architectural Glass

· Custom Glass Processing

With advanced production equipment, strict quality control, and extensive export experience, we serve customers across Africa, Europe, the Middle East, Australia, and North America.

Patterned glass is manufactured through a specialized rolling process that embosses decorative textures directly onto the glass surface. Combined with modern tempering, laminating, and processing technologies, patterned glass offers an excellent balance of privacy, beauty, and functionality.

Whether for bathrooms, office partitions, hotel interiors, or architectural projects, patterned glass remains one of the most versatile decorative glass solutions available today. Working with an experienced China glass manufacturer like TopoGlass ensures consistent quality, competitive pricing, and reliable supply for global projects.
