Guangzhou Laminated Wish Mesh Safety Glass

  • PLW-TP
  • Topo Glass

Product Details

Product Item: Laminated Wire Glass

Guangzhou Laminated Wish Mesh Safety Glass

6mm, 7mm, 10mm Wire Glass

Key Specifications:

 Product No.


 Product name

 Wired Glass / Wire Glass
 Clear / Ultra Clear

 6mm, 7mm, 10mm

 Minim Size
 600mm x 400mm
 Biggest Size
 2000mm x 1200mm




 Rolling Process


 Dry Laminated Glass

 Layer Type
 Common Laminated Glass

 Surface Pattern

 Intermediate Film
 Hardware Fitting
 Melting Point
 Low Temperature


 Wood Crates or Plywood Crates



 Loading Port

 Nansha Port / Huangpu Port

 Delivery Time

 Within 15 working days


  Building, Cars, Door, Window, Furniture, Home Appliance,

  Electronics & Instruments, Auto Manufacturing, Daily Products, Military etc.

Special Features:

*Fire Resistance

Even if the wire glass is broken, the wire or net can support the fragments, which are hard to collapse and break. It can block the penetration of the flame and the fire powder when the flame is worn out and prevent the spread of the flame from the opening.

According to the Japanese Building Standard Act Article 64, made the provisions of fire doors. The opening of the outer wall must prevent the flame from spreading and burning. Combined the wire glass with B kinds of fire doors frame, it can be used as a B fireproof material.


Wire glass can prevent debris flying apart. Even in the face of earthquakes, windstorms, shocks and other external pressure break the glass, the fragments are very difficult to fly, so compared with ordinary glass, Wire glass is much safety and not easy to cause debris scattered and wounding.

*Anti-theft Function

Ordinary glass is very easy to break, so thieves can sneak into illegal activities, while the wired glass is not. Even if the glass is broken, there is still metal wire mesh at work, so the thief can not easily steal. This anti-theft glass wire clip gives people a sense of security psychologically.

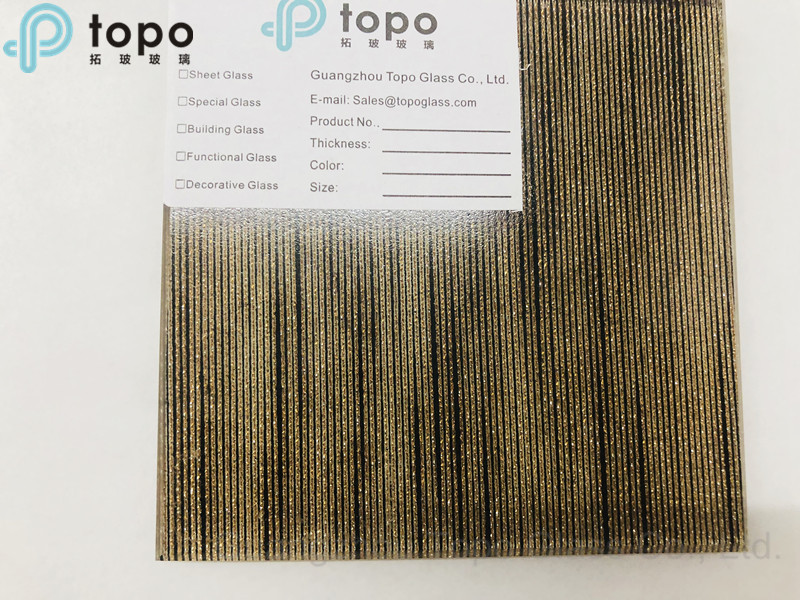

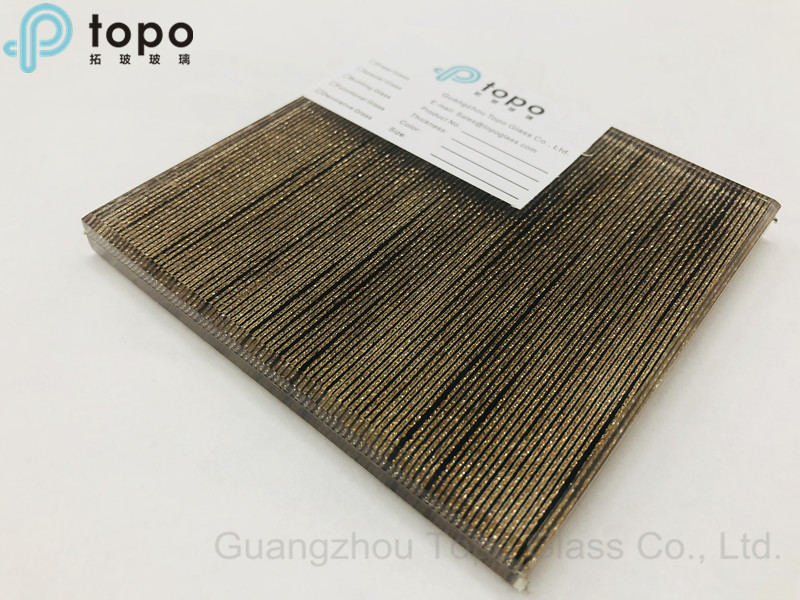

Product Show:

Wire Mesh Safety Glass

140 800x600

Wire Mesh Glass for Sale

138 800x600

Tempered Glass with Wire Mesh


Due to the presence of tinsel wire mesh glass, so the overall integrity of the glass has greatly improved. To avoid the collapse of the overall collapse, which has a certain fire safety and security effects. The disadvantage of the laminated glass is poor perspective, because of its presence within the screen, the visual effects have a certain interference, by bare glass in the edge of the wire easily corroded. Clip wire mesh glass safety is reflected in the destruction of the integrity remains, the fragments of glass will not pull in the wire pull, reducing the harm to the human body. Can be used in skylights, roofs, interior partitions and other easy to cause debris wounding occasions. In addition, because the mesh wire glass is not easy to penetrate, there is also a certain anti-theft effect for the glass of windows and doors. Mesh glass can also be used as two fire doors and windows. Ordinary glass in the event of fire susceptible to thermal rupture and fall, causing air flow and fire spread. Although the glass of the clamped screen produces a burst in the fire, it can maintain the integrity due to the support of the metal wire or the net without breaking down, which prevents the flow of air and has a good resistance to the spread of the fire effect. Clip wire mesh glass is also suitable for earthquake-proof occasions, such as the seismic protection of higher buildings and industrial vibration of the plant and other buildings. Clip wire mesh glass to improve the brittle nature of flat glass is cheap, widely used architectural glass.
