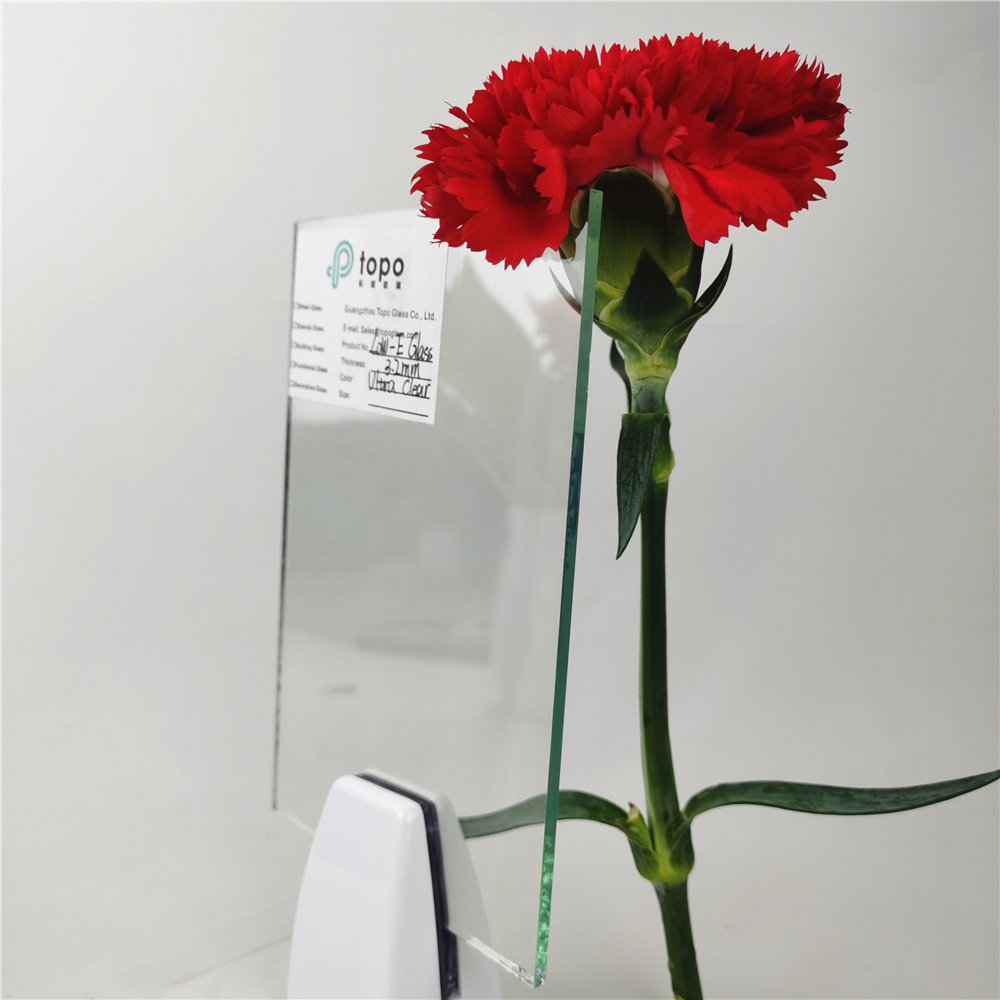

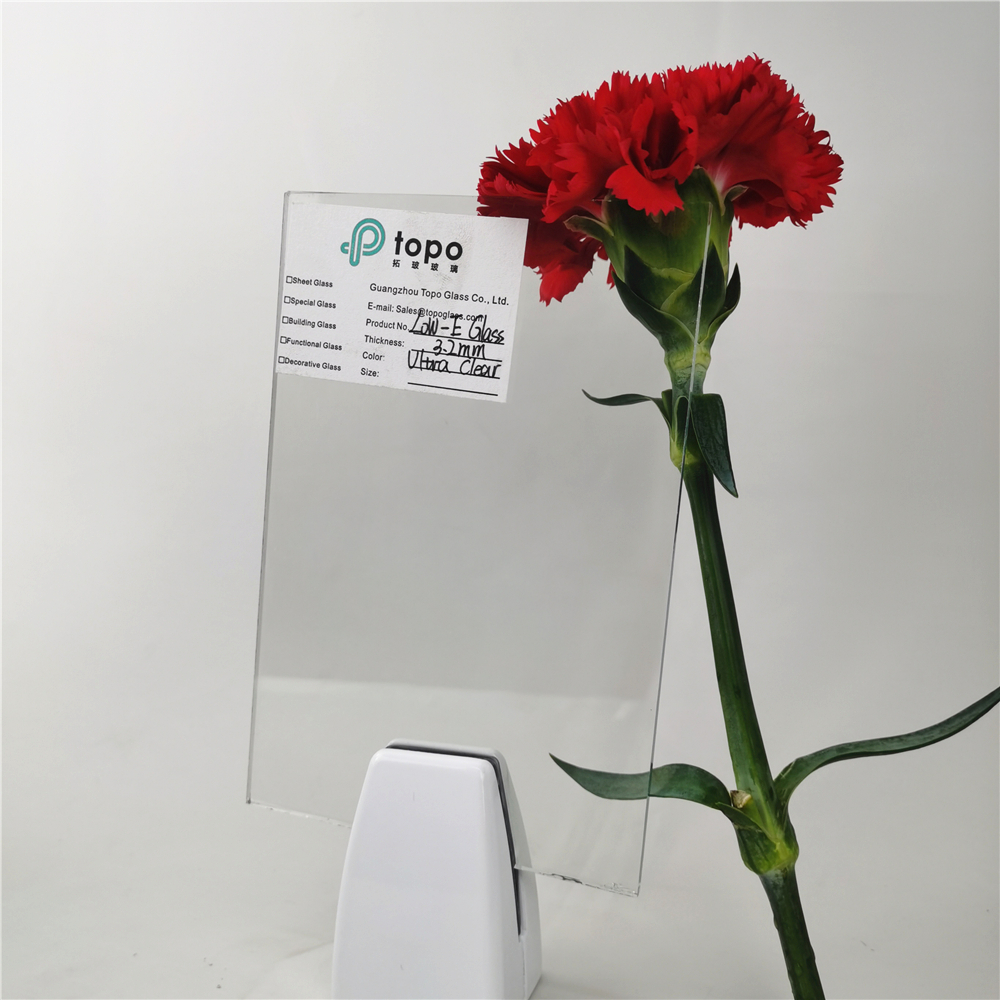

5mm 6mm 8mm Functional Low Efficient Low E Glass

 Product name

 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm

2440mmx3300mm / 2440mmx3660mm / 2140mmx3300mm / 2140mmx3660mm /

1830mmx2440mm/ 1650mmx2140mm / 2140mmx1830mm / 1650mmx2440mm etc.

 Customized

 Customized

 Structure

 Solid

 Technics

 Coated Glass

 Transparency

 Transparent

 Packing

 Safety Wooden Packages

 MOQ

 20ft

 Loading Port

 Nansha Port / Huangpu Port

 Delivery Time

 Within 15 working days

 Usage

 Offline: Freezer, Display Counter,  Vacuum Cabinet, Flat Collector

 Production Process

 At the end of the forming area of the   float production line,

 Chemical Vapor Deposition (CVD) Deposition of Metal Oxides at High Temperatures

 Using vacuum metallurgy sputtering coate metal silver or metal oxide plating on annealed glass on vacuum coating equipment

 Coating Material

 SnO2

 Metal Silver or Multilayered Oxide

 Machinability

 Simple processing;

 Can be used monolithically

 Synthetic insulating glass

 More difficult to process, the edge needs to remove the film

 Styles

 Monotonous color, single species

 Rich colors, many varieties

 Energy   Efficiency

 0.15~0.25

 0.02~0.15

 Optical properties

 Visible light transmittance is about 75%

 Visible light transmittance is more than 89%, Hollow Glass is up to 80%; UV transmittance is only 52% (Clear Glass is with 71%)

 Appearance

 Foggy, general texture

 With glass texture, more beautiful and more grades

 Application trends

 Affected by energy-saving trends, market share is decreasing

 Widely used with increasing markets, partially replacing the online LOW-E Glass
