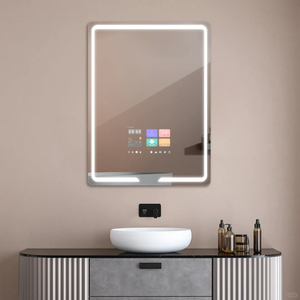

3mm-8mm Smart Magic Mirror Glass

Quantity:
  • S-F7
  • Topo Glass

Product Details

Product Item: Magic Mirror / Smart Beauty Mirror / Wisdom Bathroom Mirror Imaging

3mm-8mm Smart Magic Mirror / Wisdom Bathroom Mirror Imaging Glass (S-F7)

3mm,4mm,6mm,8mm,15mm Magic Mirror/Wisdom Bathroom Mirror Imaging


What is Magic Mirror?

Intelligent dressing mirror, intelligent beauty mirror, intelligent bathroom mirror, is also called as magic mirror, mirror display mirror, mirror imaging mirror, waterproof mirror glass and so on.


Mirror glass is the upgraded version of the Translucent Semi - reflective Glass (F3). Different display equipment can be changed to mirror display equipment as needed. Mirror glass is characterized by high reflectivity and strong penetration, it is a optical coated glass which is designed specially to ensure reflective and transparent display equipment.


It can hide the display system perfectly and appear the mirror effect when it display the equipment is off, and it can through the light source of the display equipment perfectly and then display the screen when it display the equipment is open.


Special Features:

There are following characteristics for mirror glass:

1)Turned the ordinary screen into a mirror three-dimensional screen, and change the appearance of the monitor completely;

2)Block the monitor and the rear equipment to achieve the frameless effect. Its reflected image is clear and it reflect all the wave bands of light uniformly (no color cast) and make the mirror effect is closer to the silver mirror effect;

3)Change the screen's waterproof performance;

4)It has super-hard protective layer, and its hardness can reach to the level of jade;

5)Anti-fingerprint (AF) technology, no fingerprints effect;

6)Vertical coated line, no dregs, and no light leak spot;

7)The maximum panel: 7000mm*3300mm.


Key Specifications:

 Product No.

 S-F7

 Product name

 Magic Mirror / Smart Beauty Mirror / Wisdom Bathroom Mirror Imaging

 Color

 Clear & Mirror

 Thickness

 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm

 Product Size

 2140mm x 3300mm

 Customized

 Customized

 Structure

 Solid

 Reflectivity

 70%

 Transparency

 Translucent

 Packing

 Wood Crates or Plywood Crates

 MOQ

 1000 Square Meter

 Loading Port

 Nansha Port / Huangpu Port

 Delivery Time

 Within 15 working days

 Usage

 holographic showcase, interior, stage, bathroom, Car Mirror, Screen TV, etc.


Product Show:

3

Technical Specifications:

Light Transmittance

>30%

Reflectivity

>60%

Optical Distortion

<50°

Transmitted and Reflected Ratio

1:2

Flatness

<0.2%

Heat Resistance

700℃

Hardness

6

Deep-processing Type

Coated

Softening temperature

1500℃

Color

Colorless and reflective

Deviation of Transmitting

±2

Deviation of Thickness

±0.2-±0.5

Deviation of Size

±1

Corrosion Resistance

High

Acid resistance

High

Alkali resistance

Low

Bubble

No

Inclusions

No

Point-like defect density

No

Drawback of Fracture Surface

No

Streak

No

Postern

No

Scratch

No

Curvature

<0.2%

Density

2500kg/sqm

Processing Type

rotate angle, grind side, punching, tempering, 45˚ edge stitching

Thickness

4mm,6mm,8mm

Maximum Panel

11000*3300

Line route

Invisible

Surface Crack

Invisible

Pinhole

<International Standard

Fleck

<International Standard


Thanks for your time. Welcome to query us at anytime for any questions.
