3mm-15mm High Penetration Less Reflection Nano Anti-Reflective Glass

Availability:
  • AR-TP

  • Topo Glass

Product Details

Product Item: Nano Anti-reflective Glass / AR Glass

3mm-15mm High Penetration Less Reflection Nano Anti-Reflective Glass

3mm,3.2mm,4mm,5mm,6mm,8mm,10mm,12mm Anti-reflective Glass


Special Features:

*More Steady

*High penetration, less reflection;

*The light transmittance of one layer is 96-97%

*The light transmittance of two layers is 97-98%

*Anti-ultraviolet, effectively protect eyes

*Resistant high temperature

*Strong impact resistance

*Resistant acid and alkali

*More bright colors, much contrast

*Hot and cold deformation can be almost omitted, applicable to all types of environment

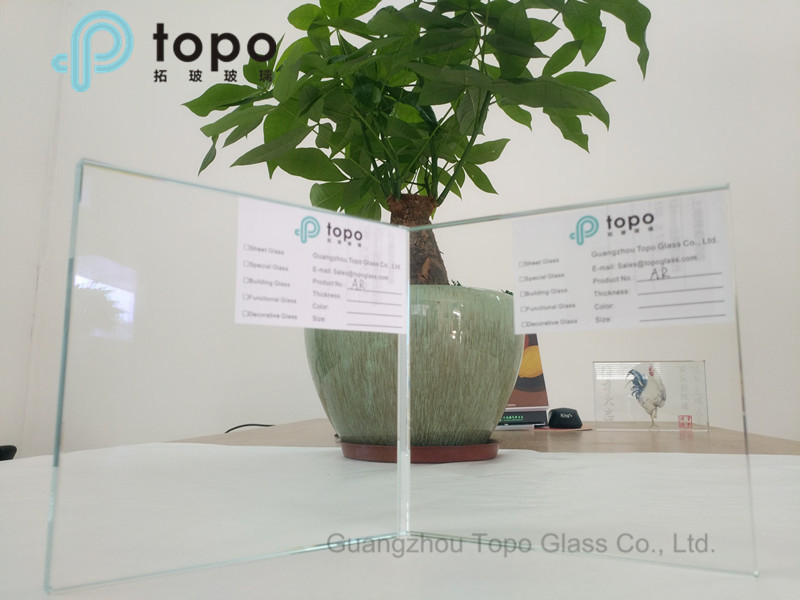

Glass Show:

Anti-reflective Glass / Non-reflective Glass

AR Glass 7


The unique advantages of the Nano Anto-reflective Glass:

 The advantages of the Nano Anto-reflective Glass

1)The highest peak of visible light transmittance is 99%.

2) The average reflectivity is less than 4%, and the lowest value is less than 0.5%.

3)More beautiful color, more intense contrast.

4)It is uvioresistant, and can protect the eyes effectively.

5)High temperature resistance

6)The best scratch and abrasive resistance

7)Resistant to be scrubbed by various detergent

8)The strong impact resistance

9)Maintain the perspective

10)More bright colors, much contrast

11)Hot and cold deformation can be almost omitted, applicable to all types of environment


Technical Specifications:

Our coating technology—nano coating process

By controlling the physical, chemical and electronic properties and the size accurately of synthetic nanoparticle, and coating an inorganic porous silicon film which is able to balance the air and the refractive index of the glass in the both surfaces of the glass, it improve the optical properties of the original glass and get a best transparency and it also have the self-cleaning function.

Experimental Project

Experimental Condition

Quantity

Experimental Situation

Results

Hardness before Tempered

Weight 750 grams, hardness of the Mitsubishi pencil, test 5 times before tempered

1



6H

Hardness after Tempered

Weight 750 grams, hardness of the Mitsubishi pencil, test 5 times after tempered

1



7H

Friction Experiment

0000# Steel wool with weight 1000 grams, rub 10 times

1

Appearance Changed

OK

Chemical Drug Resistance

Repeatedly wipe with sweat

1

Appearance Changed

OK

High Humidity Experiment

60℃90%RH/500hr for 21 days

1

Appearance Changed

OK

Chemical Endurance Test

Solution bubble in 3%NaOH Alcohol  for 30 minutes

1

Appearance Changed

OK

Thanks for your time. Welcome to query us at anytime for anyquestions.
