1mm-25.4mm Clear Float Borosilicate Glass

Quantity:
  • S-BC
  • Topo Glass

Product Details

Product Items: Borosilicate Glass

1mm-25.4mm Clear Float Borosilicate Glass


Specificity:

1) Stronger resistance to fracture;

2) Borosilicate glass is lower than ordinary glass dense;

3) When broken, borosilicate glass cracks tend to be relatively large, rather than crushed (it will unit, not split);

4) Borosilicate glass has a low dispersion (about 65 Abbe crowns) and a relatively low refractive index (the entire visible range 1.51-1.54);

5) The linear expansion coefficient is 3.3 ± 0.1 × 10-6 / K;

6) Resistant to Water, Acid and alkali ;

7) Superior corrosion resistance;

8) It has good thermal stability, chemical stability and electrical properties, it is resistant to chemical attack, thermal shock resistance, good mechanical properties, to withstand high temperature and other characteristics.


Key Specifications:

 Product No.
 S-BC
 Product name
 Borosilicate Glass
 Thickness
 1mm -- 25.4mm
 Product Size

1200mm×600mm

1150mm×850mm

1150mm×1700mm

 Technics
 Float Process
 Structure
 Solid
 Identical temperature  difference(K)
 100 >300(Strength)
 Maximum working    temperature(℃)
 ≥450
 Softening temperature
 820±10
 Refractive(nd)
 1.47384
 Light transmission

92%(thickness≤4mm)

91%(thickness≥5mm)

 Tensile strength
 40-120Nmm-2
 Processing
 pre-cut formats, edge processing
 Processing temperature (104dpas)
 1220 ℃
 Specific heat
 0.9jg-1K -1
 MOQ
 60pcs
 Loading Port
 Nansha Port / Huangpu Port
 Payments terms
 T/T
 Delivery Time
 Within 15 working days

 Application Borosilicate 3.3 serves as a  material of true function and wide  applications

 1)Household electrical appliance (panel for oven and fireplace, microwave   tray etc.);

 2)Environmental engineering and chemical engineering (lining layer of   repellence,  autoclave of chemical reaction and safety spectacles);

 3)Lighting (spotlight and protective glass for jumbo power of floodlight);

 4)Power regeneration by solar energy (solar cell base plate);

 5)Fine instruments (optical filter);

 6)Semi-conductor technology (LCD disc, display glass);

 7)Medical technique and bio-engineering;

 8)Safety protection (bullet proof glass)


Technical Data:

Dimensions(mm):1200×600 1150×850 1150×1700

other formats upon request

Available thickness(mm):1--12

Density (g/㎝3 ) (at 25℃): 2.23±0.02

Co-efficient of expansion(α)(20-300℃):3.3±0.1×10-6

Softening point(℃):820±10

Identical temperature difference(K):100 >300(Strength)

Maximum working temperature(℃):≥450

Refractive(nd ) :1.47384

Light transmission:92%(thickness≤4mm)

91%(thickness≥5mm)

Processing:pre-cut formats, edge processing

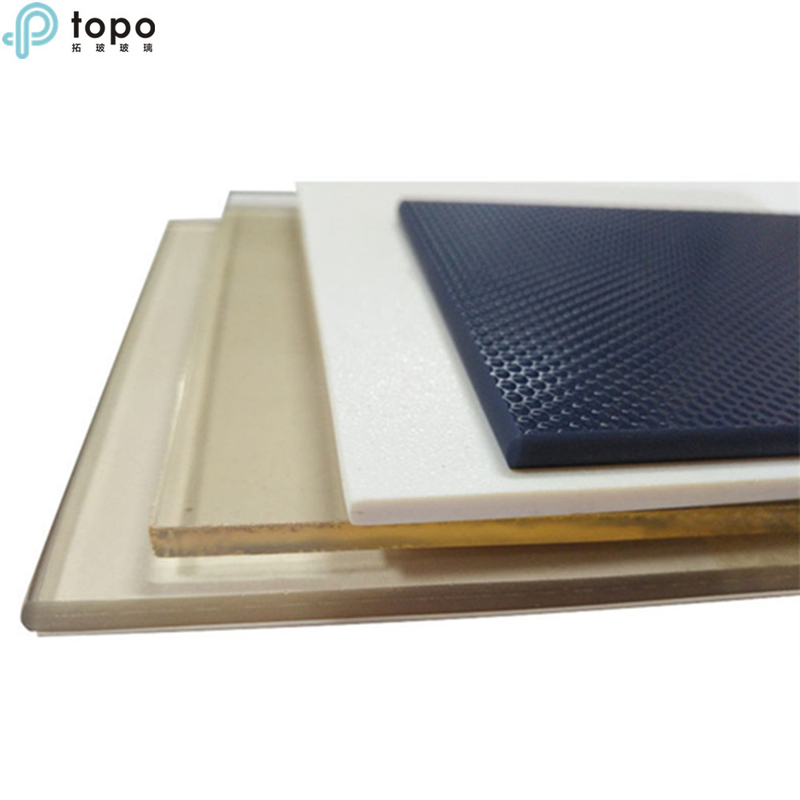

Product Show:

22

Application:

Borosilicate 3.3 serves as a material of true function and wide applications:

1)Household electrical appliance (panel for oven and fireplace, microwave tray etc.);

2)Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles);

3)Lighting (spotlight and protective glass for jumbo power of floodlight);

4)Power regeneration by solar energy (solar cell base plate);

5)Fine instruments (optical filter);

6)Semi-conductor technology (LCD disc, display glass);

7)Medical technique and bio-engineering;

8)Safety protection (bullet proof glass)
